Sensor Data. Manufactured according 3-A Sanitary Standard number 46-3 and to meet fulfill the strict hygienic requirements. Sensor house in stainless steel AISI 316L. Optical window: Sapphire with Teflon seal. Protection class: IP 67 (Nema4x). Electronics type Opto-5. Supply: 24 VDC ± 15%, 100 mA. Analogue Output 4 - 20 mA. The FCO sensors is calibrated according to customer specifications. |
|
The yellow flashing LED will increase its flash frequency as the output signal increases. |
|
Mounting The speed of the flow and delay time must be considered when selecting the distance between sensor and valve to be made active. The sensor immediately reacts to changes in the process flow, the direction or speed of the flow does not affect measuring. Note! After mounting, to avoid condensation in the electronics, keep the sensor electrified and always keep the cover screwed on. |
|

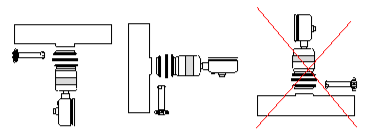

Mounting in the process line |
|
Unusable position |
|
Connection / Soldering in the 8 pole Cable Connector. 8 pol cable connector, Binder Article no. 09-0173-90-08. Cable: 3 x LiYCY 0,34 mm² + Outer screen The cable connector can be delivered with a connected cable. Specify the cable length. Only FCO-TR 3 and 6 measuring of water in refraction mode, 2, 5 volts DC = 4 mA output. Adjust the current to the transmitter with the potentiometer IR mA. Measuring points 7 and 8 measuring the current to the IR transmitter. Connection in the connector. Pin 2. Common output for sensor with refraction and turbidity. Pin 2. Sensor with only Turbidity or Refraction. Pin 6. Common minus. Pin 5. Power supply + 24 VDC and 6 to minus. |
|
Solder side |
